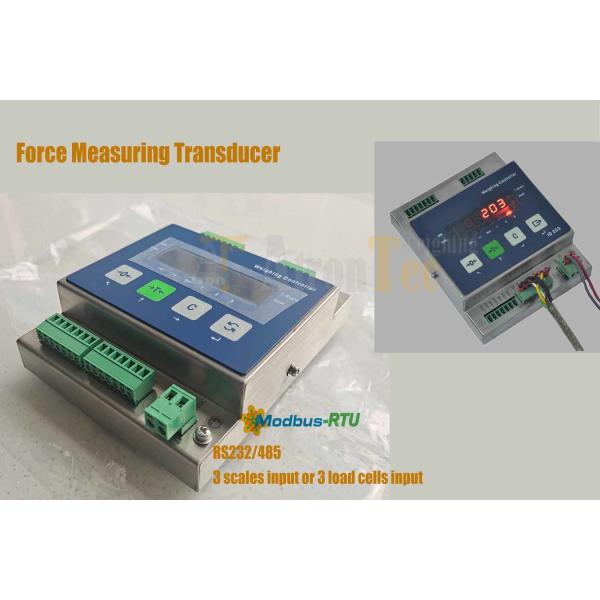

Force Measuring Transducer,LED Display Process Weighing Controller

MODEL:ID203

This weighing controller is a high precision indicator which can support 3 scales input and send the data continuously to PLC or DCS through the MODBUS-RTU or serial interface. The stainless steel DIN Rail housing enables this weighing controller to be applied in complex and harsh environment.

Main Features:

* 6 bits,0.28",7.1mm high red LED display,4 status lights;

* 100,000 display division,high accuracy,CMC6000e;

* 200Hz A/D speed,200 times/second target comparision;

* 5-setp dynamic filter,high level shake proof;

* Standard RS232/485,support MODBUS-RTU communication and continuous output;

* Transfer weight to PLC or DCS system;

* Remote calibration through MODBUS-RTU;

* MODBUS-RTU read the weight for 3 scales;

* Support the calibration without the weights;

* DIN Rail housing

Specifications:

For Tension testing

Outline and Mounting Size:
